What Are the SPI Surface Finish Standards for Plastic Injection Molding?

Miscommunicating cosmetic expectations with offshore injection molders leads to scrapped production runs and costly tooling reworks. We eliminate this friction by aligning designs with strict SPI surface finish standards for predictable cosmetic and functional outcomes.

SPI surface finish standards are an industry-recognized classification system developed by the Society of the Plastics Industry that defines twelve distinct grades of surface roughness and cosmetic appearance for injection-molded plastic parts, ranging from high-gloss diamond polishes to coarse sandblasted textures.

Key takeaways:

• SPI standards categorize finishes into four main grades: A (glossy), B (semi-gloss), C (matte), and D (textured), each requiring specific abrasive media and preparation steps.
• Selecting the correct SPI finish prevents unnecessary tooling costs, as higher-gloss finishes (like A-1 or A-2) require exponentially more labor-intensive hand-polishing with diamond dust.
• Draft angle requirements increase significantly with textured finishes (C and D grades) to prevent drag marks, scuffs, and ejection failures during the molding cycle.

What Are the Four Primary SPI Finish Classifications?

When we evaluate plastic injection molding designs, we categorize cosmetic and functional requirements into four distinct groups to match tool polishing processes with part specifications.

SPI finish classifications divide molded surfaces into Grade A (shiny mirror finish), Grade B (semi-gloss paper polish), Grade C (matte grit-blast finish), and Grade D (textured sandblast finish), with each group containing three distinct sub-grades.

Definition of SPI Surface Finish Standards

An SPI surface finish is a standardized scale that specifies the exact polishing or texturing method applied to an injection mold’s cavity to produce a predetermined roughness on the molded plastic part.

Understanding these boundaries helps sourcing managers choose the optimal balance of aesthetics, function, and tooling cost. Grade A finishes require pristine tool steel and intensive manual polishing. Our partners use specialized diamond pastes to achieve these mirror-like surfaces, typically reserved for optical components where clarity is critical.

Grade B finishes offer a high-quality aesthetic without the extreme cost of diamond polishing, using fine emery paper to remove machining marks. Grade C finishes use silicon carbide stones to create non-reflective matte surfaces, highly effective for internal structural components.

Grade D finishes are produced using abrasive blasting media like glass beads, creating a non-slip texture that hides scratches. When we audit plastic injection molding partners among our 18 audited injection molding factories, we ensure they have the proper texturing setups to deliver consistent finishes.

How Do SPI Standards Impact Tooling Costs and Lead Times?

Selecting a finish is more than an aesthetic choice; it directly dictates your mold manufacturing time and overall tooling budget when sourcing from Vietnamese injection molders.

Tooling costs and lead times increase significantly as designers move up the SPI scale from textured D-3 finishes to mirror-polished A-1 finishes, because high-gloss grades require intensive manual labor and multiple stages of polishing.

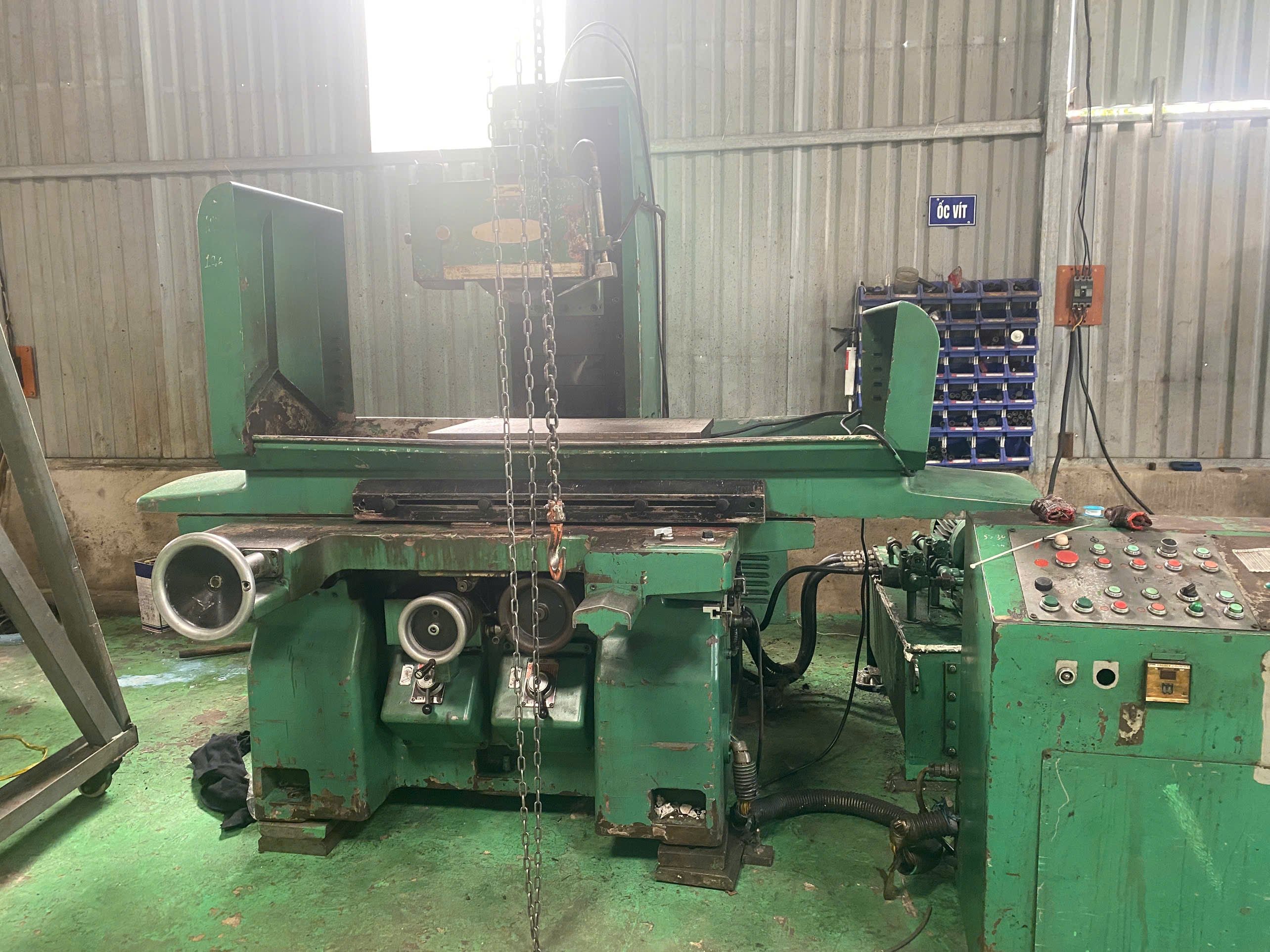

The manufacturing of an injection mold cavity starts with rough CNC machining, followed by EDM or precision milling. At this stage, the steel cavity is rough. To achieve an SPI Grade C or B finish, technicians must systematically polish out these machining marks using progressively finer stones and sandpaper.

Moving from a Grade B semi-gloss to an SPI A-1 diamond polish is where costs spike. Polishing an A-1 cavity requires highly skilled toolmakers to spend dozens of hours hand-polishing. Any microscopic blemish means starting over, adding days or weeks to lead times. When we inspect tooling facilities like Bien Hoa Scm, we evaluate their CNC milling machines and precision hand-finishing areas.

Under the EVFTA, sourcing from Vietnam provides duty-free access to high-quality tooling. Our sourcing team works with partners to balance these cosmetic goals, often suggesting restricting Grade A polish only to visible cosmetic faces while leaving non-visible ribs at Grade C, which significantly reduces hand-polishing hours and costs.

What Draft Angles Are Required for Different SPI Finishes?

Failing to design adequate draft angles for your specified SPI surface finish is one of the most common causes of part rejection during trial production runs.

Draft angle requirements scale directly with the roughness of the SPI finish, ranging from a minimum of one degree for smooth Grade A finishes to over five degrees for deeply textured Grade D finishes.

Draft angles are critical because they allow the molded plastic part to release cleanly from the mold cavity as soon as the tool opens. Without sufficient draft, the contracting plastic drags along the steel surface during ejection.

For highly polished Grade A finishes, a small draft angle of 0.5 to 1.0 degree is technically feasible because the surface is smooth. However, a vacuum can form between the glossy plastic and the polished steel, causing sticking. Conversely, textured finishes like Grade D require steeper draft angles. Because sandblasting creates microscopic undercuts in the mold cavity, the plastic flows into these tiny depressions. If ejected without a wide draft angle, these interlocks will scrape against the mold, causing severe drag marks.

We verify these draft profiles during our 50-point Dolphin Audit and design reviews. When we audit manufacturing setups, such as Toyomi Plastic which possesses CMM equipment for quality inspection, we check that physical parts match the CAD draft requirements precisely.

How Do Material Selection and Molding Parameters Affect the Finish?

Achieving a flawless surface finish requires aligning your chosen resin with the correct tooling finish and process control parameters on the molding factory floor.

Material selection and molding parameters dictate the success of an SPI finish, as polymer shrink rates, melt temperatures, and injection speeds directly affect how accurately the plastic replicates the mold’s polished or textured cavity.

The interaction between the plastic resin and the mold steel determines the final cosmetic outcome. Amorphous polymers like ABS, polycarbonate, and PMMA replicate polished Grade A surfaces exceptionally well due to low shrinkage. They flow smoothly into fine details and maintain a highly reflective surface.

In contrast, semi-crystalline resins like polypropylene and nylon shrink significantly as they cool. This high shrinkage can pull the plastic away from the polished mold surface, causing sink marks or a dull appearance. For these, a matte Grade C or textured Grade D finish is more practical, as the texture masks minor variations.

Furthermore, process parameters like injection pressure and mold temperature must be tightly controlled. Low injection speed or low mold temperature can cause the plastic to freeze prematurely, preventing it from filling the microscopic peaks of a Grade D texture, resulting in an uneven finish. Our vetted partners in Vietnam maintain strict quality control over these parameters. When we quote projects, we analyze your material choice against the requested SPI finish to guarantee a perfect cosmetic outcome.

FAQ

What is the difference between SPI and VDI surface finishes?

SPI and VDI are completely different standards; SPI uses abrasive polishing, stones, and sandblasting to categorize finishes into 12 grades, whereas VDI 3400 is a German standard based on Electrical Discharge Machining texturing with 45 defined roughness classes. The choice depends on regional tooling preferences and the texturing method chosen.

Which SPI finish is best for hiding sink marks and cosmetic defects?

SPI Grade D textured finishes are best for hiding sink marks and molding blemishes because their non-directional, rough topography scatters light. This scattering prevents the human eye from spotting minor depressions caused by internal rib shrinkage.

Can a mold finish be changed after the tool has been cut?

Yes, a mold finish can be modified, but it is much easier to upgrade to a shinier SPI grade than to revert a textured mold back to high-gloss. Moving from a rough texture to a mirror finish requires deep re-machining or heavy manual polishing, which alters part dimensions.

Conclusion

Designing with precise SPI standards ensures your molded parts meet strict aesthetic and functional goals. Partner with our vetted Vietnamese factories to secure reliable production and get an instant quote.
