Vietnam's Sheet Metal Advantage
Sheet metal fabrication is one of Vietnam's strongest manufacturing sectors. The country has invested heavily in modern fiber laser cutters, CNC press brakes, and robotic welding cells — equipment on par with the best Chinese factories, at significantly lower operating costs.
For US buyers, the math is compelling: Vietnamese sheet metal parts are exempt from Section 301 tariffs, while identical Chinese parts face 25%. Combined with lower labor and overhead costs, our clients consistently see 35–55% total cost savings on sheet metal components.
DEWIN works with 30+ sheet metal factories across Vietnam — from small, agile shops specializing in low-volume precision work to large-scale operations running 24/7 progressive stamping lines. We match your project to the right facility based on volume, complexity, and certification requirements.
Sheet Metal Fabrication shop Floors
Verified photos of multi-kilowatt fiber laser cutters, progressive stamping presses, and bending cells.

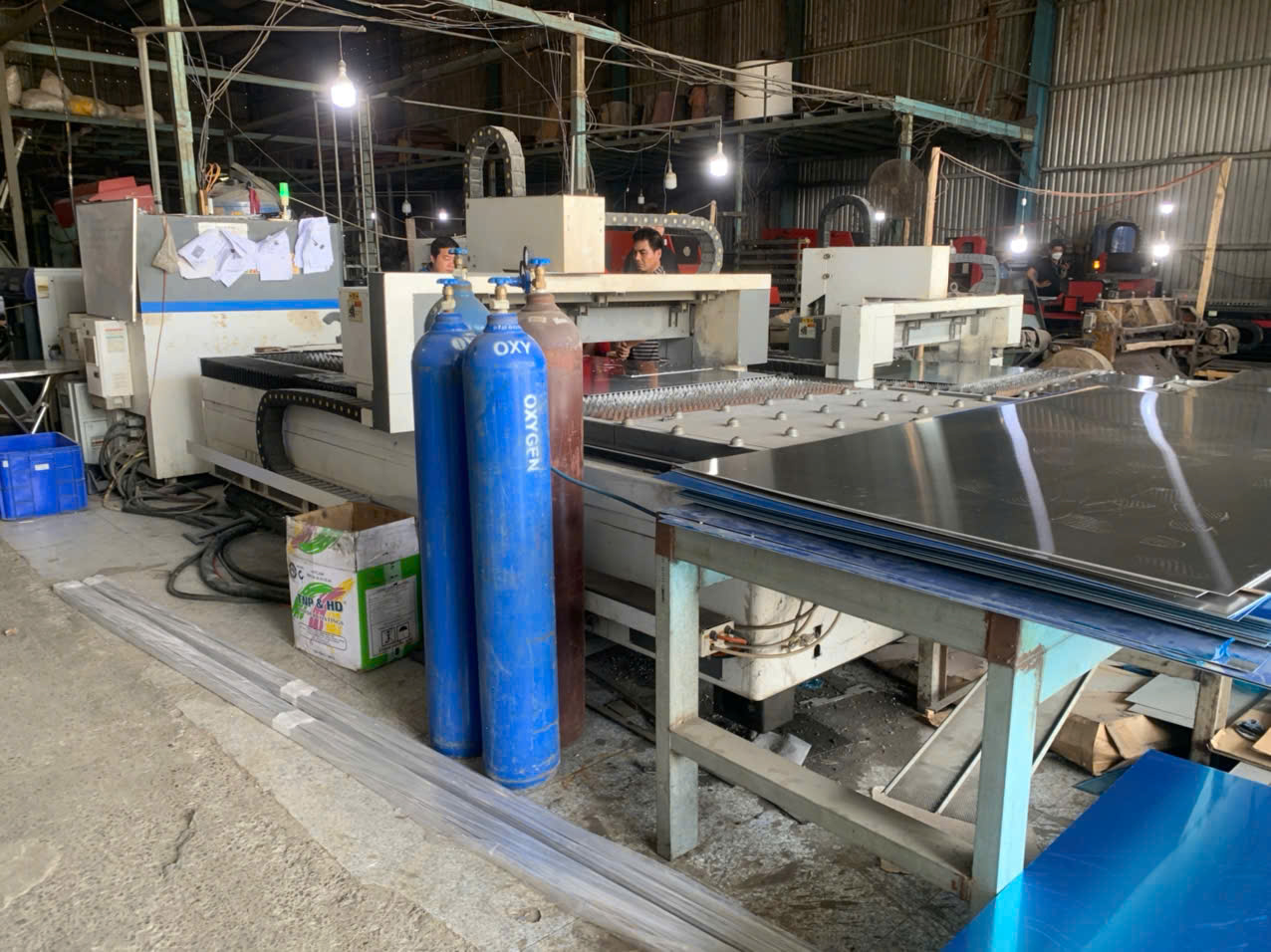

Laser Cutting Machine 1
Vinh Loc Metal Mechanical And Electrical Import Export Tradi

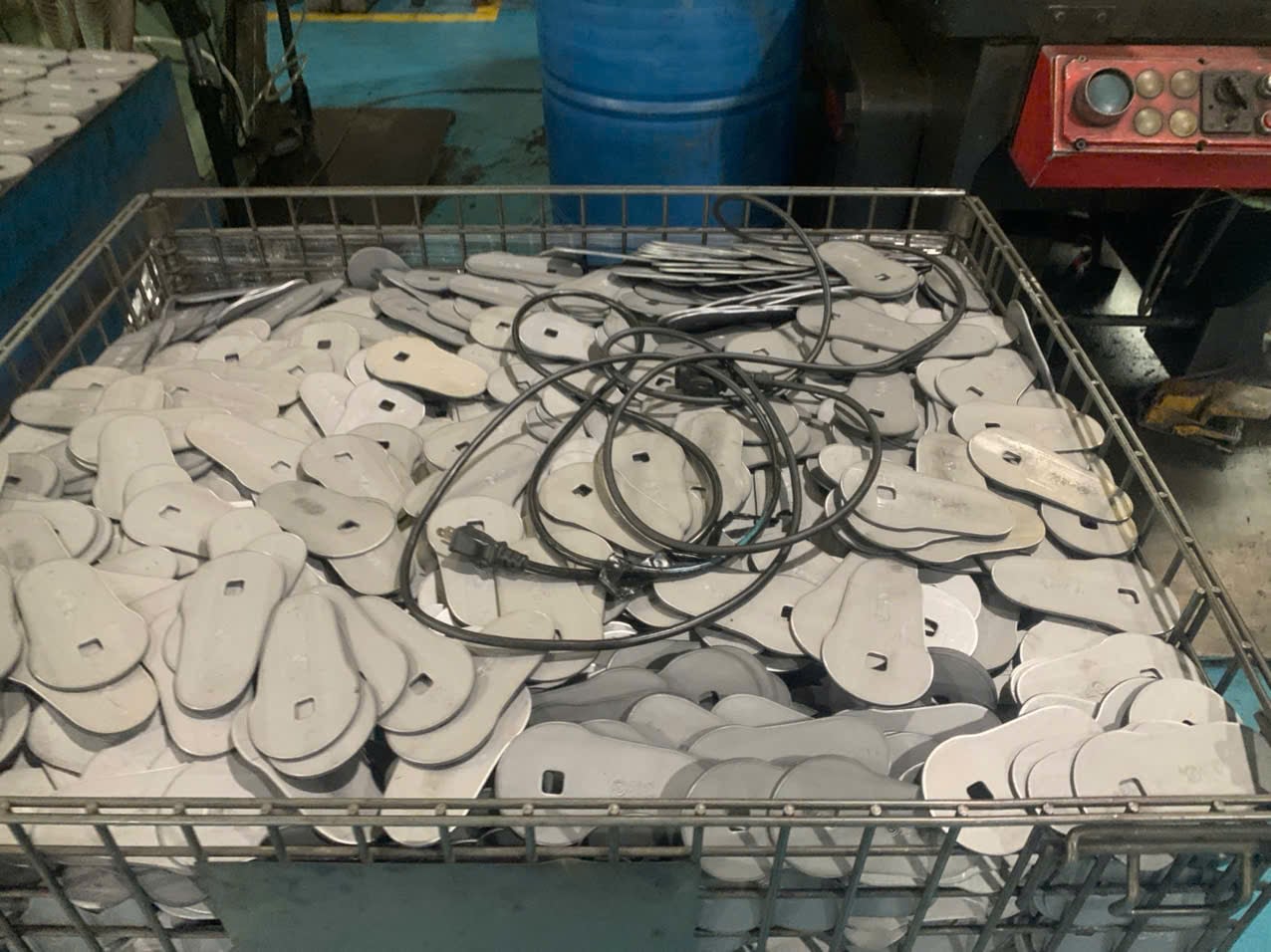

Semi Finished Product 2
Nbv Company Limited

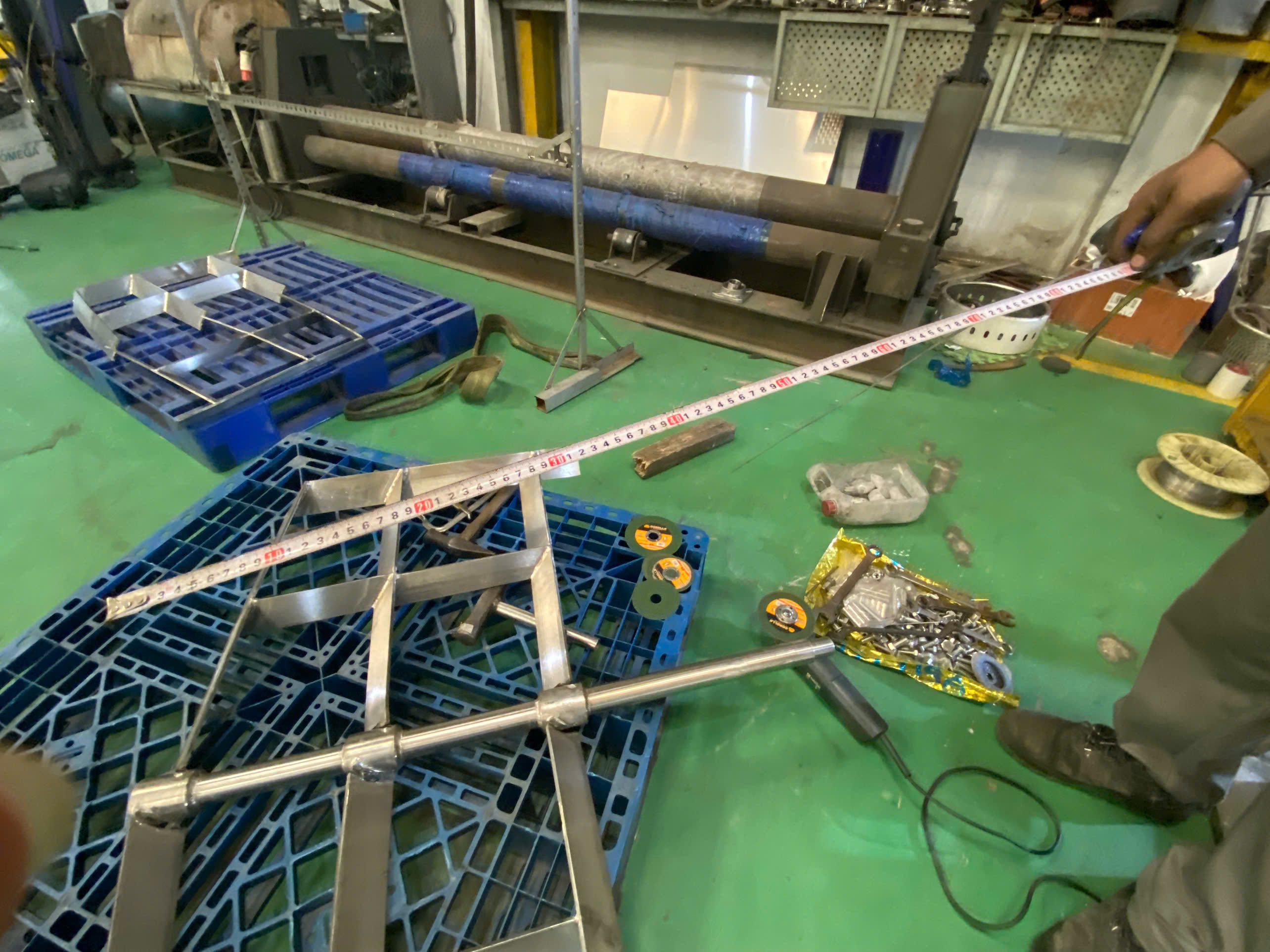

Measuring Tape 2
Hung Phat Mechanical Production Company Limited

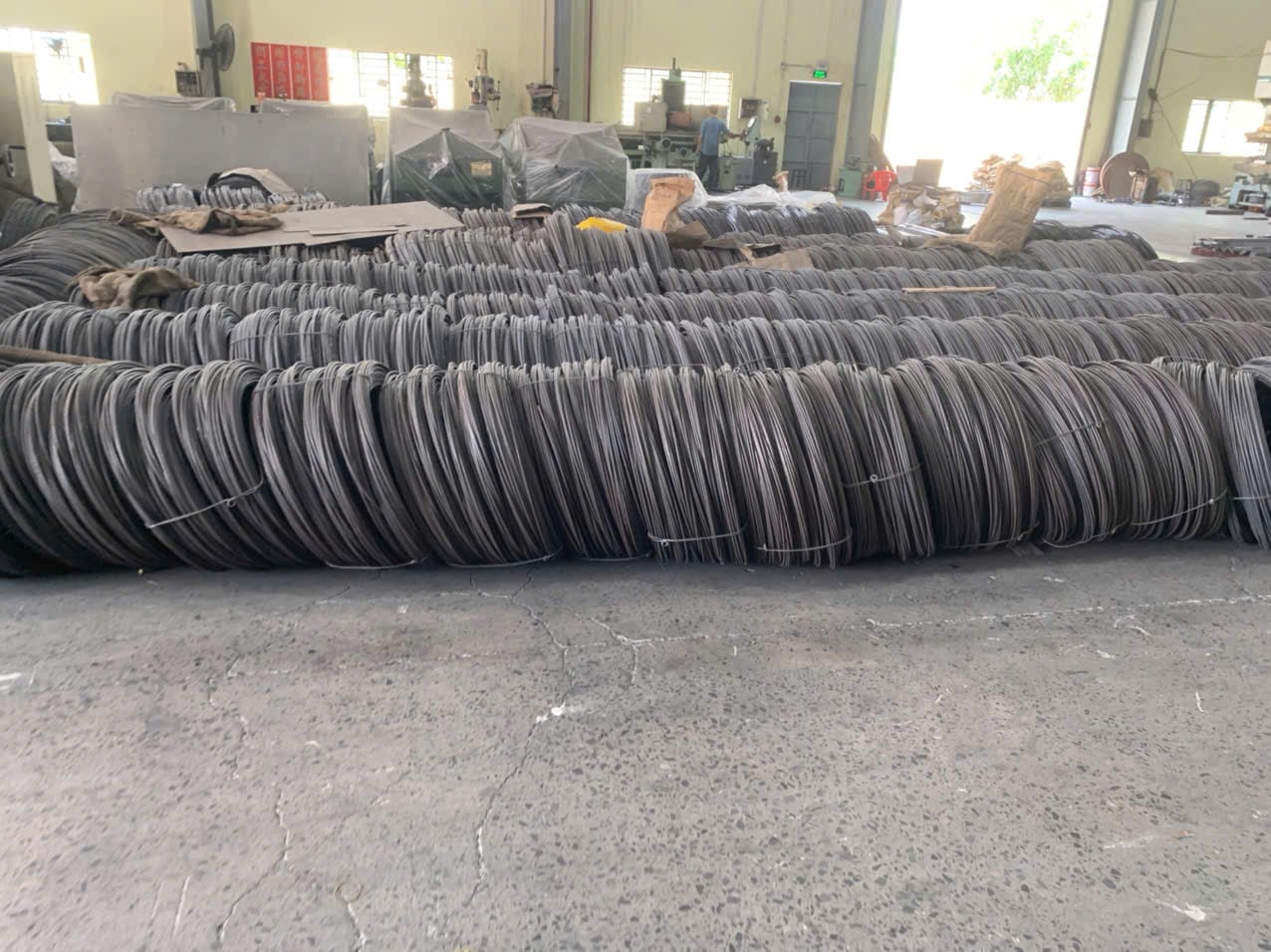

Raw Material Area
Khai Khai Phat Trading Production Company Limited
Company Yard
Khai Khai Phat Trading Production Company Limited

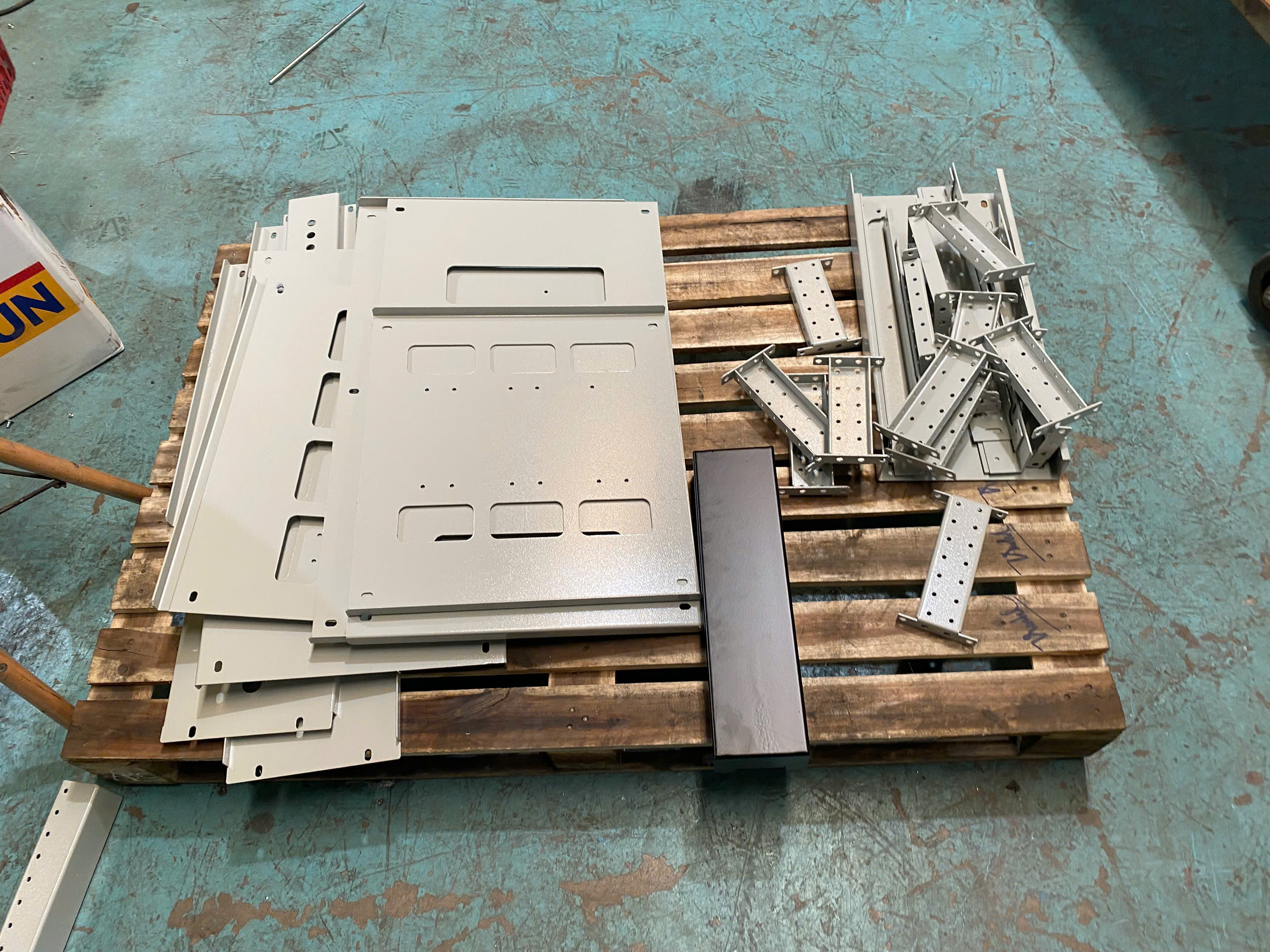

Products 9
Greenfield Technology Engineering Company Limited
See It in Production
Inside a top stainless steel pipe manufacturer in Vietnam — one of the audited metal fabrication suppliers in our network.
Top Stainless Steel Pipe Manufacturer in Vietnam
Watch on YouTube
Capabilities
Laser Cutting
Fiber lasers up to 12kW for cutting steel up to 20mm, aluminum up to 16mm, and stainless up to 14mm. Accuracy ±0.05mm. Fast turnaround for prototypes.
Progressive Die Stamping
High-speed stamping presses from 25T to 800T. Progressive, compound, and transfer dies. Ideal for high-volume brackets, clips, terminals, and connectors.

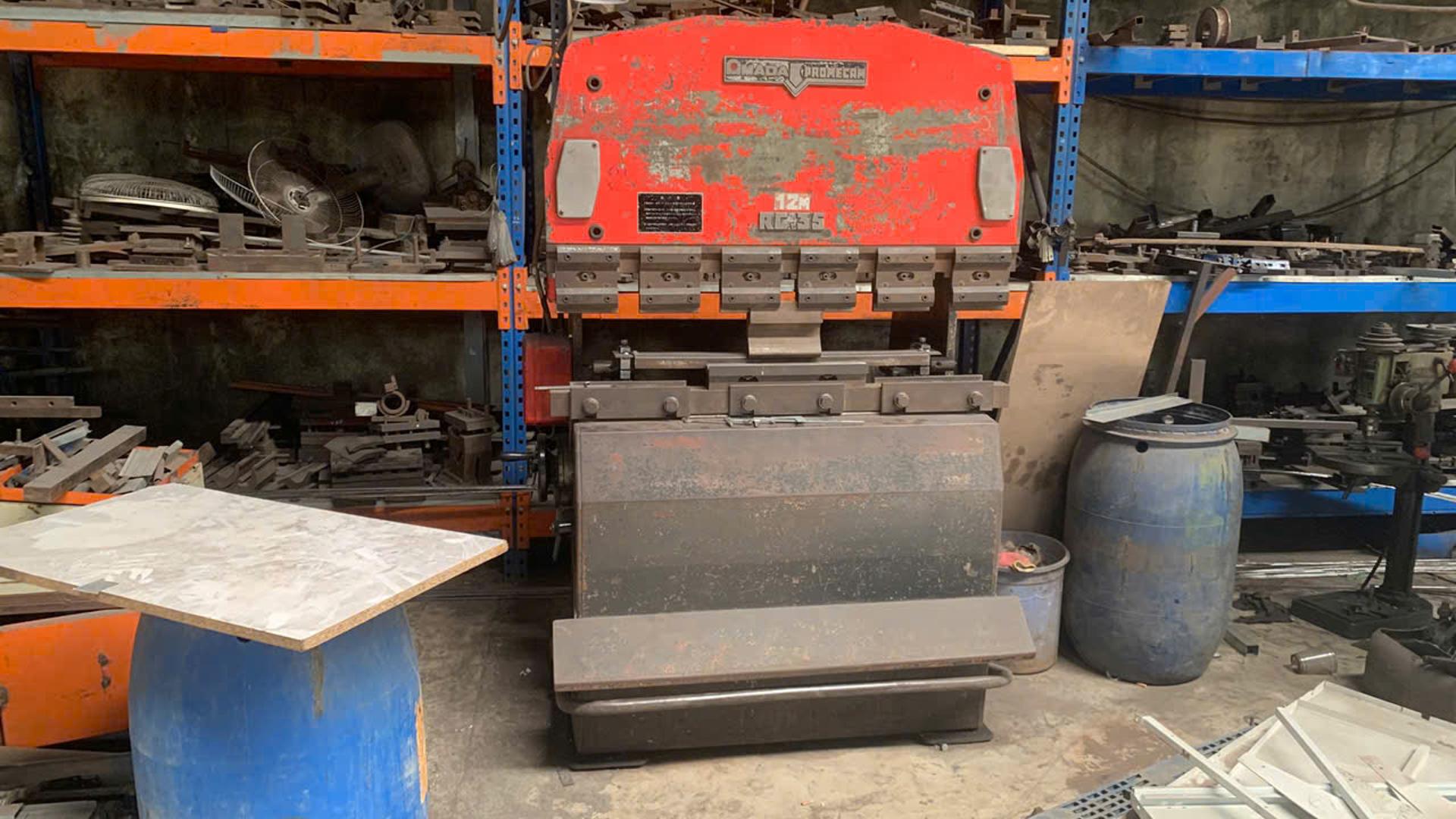

CNC Bending
CNC press brakes up to 300T × 4m. Complex multi-bend parts with ±0.1mm angular accuracy. Offline programming for consistent first-piece quality.
Welding & Assembly
TIG, MIG, spot, and robotic welding. AWS D1.1 certified welders. Full assembly including hardware insertion, riveting, and sub-assembly integration.
Technical Specifications & Manufacturing Limits
Our Vietnamese sheet metal facilities operate high-power fiber lasers (up to 12kW), CNC press brakes (up to 300T), and high-volume stamping lines. We support rapid prototyping as well as mass production weldments. Review our standard dimensional tolerances and tooling limits below:
| Capability Parameter | Standard Specifications | Precision / High-Tolerance Limits |
|---|---|---|
| Processes Supported | Laser cutting, waterjet cutting, CNC punching, bending (press brake), progressive die stamping, welding (MIG, TIG, spot, robotic), hardware insertion, assembly | Progressive die stamping (presses up to 800T), automated robotic welding cells |
| Max Blank Size | 1,500 mm × 3,000 mm (59.1" × 118.1") | Up to 1,524 mm × 3,048 mm (60" × 120") for structural panels |
| Material Thickness Range | Laser cutting: 0.5 mm – 20.0 mm (0.020" – 0.787") Bending: 0.5 mm – 12.0 mm (0.020" – 0.472") Stamping: 0.3 mm – 6.0 mm (0.012" – 0.236") | Laser cutting: Up to 25.0 mm (0.984") for mild steel Welding: Min wall 0.8 mm (0.031") for weld integrity |
| Dimensional Tolerance (Linear) | Laser cutting: ±0.20 mm (±0.008") Bending: ±0.25 mm (±0.010") Stamping: ±0.10 mm (±0.004") | Laser cutting: ±0.10 mm (±0.004") Bending: ±0.127 mm (±0.005") Stamping: ±0.05 mm (±0.002") |
| Bending Angular Tolerance | ±1.0° standard | ±0.5° (utilizing angle-monitoring press brakes) |
| Welding Standards | AWS D1.1 (Steel), AWS D1.2 (Aluminum), AWS D1.6 (Stainless Steel) | ISO 3834, ASME Section IX certified weldments |
| Typical Lead Time | 5 – 10 Business Days (Standard) | 3-day express options available for rapid prototypes |
Design for Manufacturability (DFM) Rules
Optimizing your sheet metal designs for manufacturing reduces tooling setups, prevents material tearing, and decreases unit costs. Adhere to these fundamental rules when designing your components:
Key Design Rules
- Minimum Bend Radius: Must be at least 1X Material Thickness (MT) to prevent tensile cracking at the outer bend radius. Specify a consistent bend radius across all features.
- Holes & Slots Diameter: Minimum hole diameter should be equal to the Material Thickness (1X MT). For stainless steel alloys, specify 1.5X MT to prevent punch breakage or laser heat distortion.
- Hole-to-Edge Distance: To prevent stretching and edge bulging, locate holes at least 2X MT away from the sheet edge.
- Hole-to-Bend Distance: Holes must be placed at least 2.5X to 3.0X MT away from the bend line tangent to prevent hole elongation.
- Bend Relief: When a bend terminates along a flat edge, specify a bend relief width of at least 1.5X MT (or 1.5 mm minimum) and a depth of at least 1X MT to prevent tearing.
Material Options & Grades
| Material Family | Recommended Grades | Key Characteristics |
|---|---|---|
| Aluminum | 5052-H32, 6061-T6 | 5052-H32 is highly formable; 6061-T6 has high structural strength but larger bend radii required |
| Stainless Steel | 304, 316, 430 | 304 is the food/medical standard; 316 offers superior marine-grade corrosion resistance |
| Carbon Steel | SPCC (Cold-Rolled), SPHC (Hot-Rolled), Q235 | SPCC provides smooth finishes and tight tolerances; SPHC is preferred for structural frames |
| Coated Steel | SGCC, SECC (Galvanized) | Electro-galvanized or hot-dip coatings for cost-effective outdoor rust protection |
| Copper & Brass | C110 Copper, C260 Brass | High electrical and thermal conductivity for busbars, terminals, and shielding |
Common Applications
Automotive
Brackets, heat shields, exhaust components, structural reinforcements, electrical enclosures
Industrial & HVAC
Equipment enclosures, ductwork, control panels, machine guards, frames
Furniture & Fixtures
Metal frames, shelf brackets, decorative panels, display stands
Electronics
Server racks, chassis, EMI shields, heat sinks, mounting plates
Agricultural Equipment
Tractor guards, implement brackets, wear plates, hoppers
Construction
Structural connectors, cladding panels, stair components, railings
Surface Finishes & Coating Standards
We support a wide array of chemical, electrochemical, and mechanical surface treatments to meet both cosmetic and environmental durability requirements.
Powder Coating
Qualicoat Class 1 & 2 compliant.
Thermosetting powder spray baked to a hard finish. High durability, impact/scratch resistance, and a full RAL color spectrum.
Zinc Plating
ASTM B633 compliant coatings.
Electroplated zinc with clear, yellow, or black chromate. Protects carbon steels from rust. Excellent for interior brackets.
Anodizing & Chem Film
MIL-A-8625 & MIL-DTL-5541.
Anodizing (Type II/III) for aluminum wear and color. Chem Film (Type I/II) for paint prep and electrical conductivity.
Galvanizing & Passivation
ASTM A123 & ASTM A967.
Hot-dip galvanizing for heavy-duty outdoor steel weldments. Acid passivation to restore stainless steel corrosion resistance.
The Vietnam Advantage: Tariff Exemptions & Rigorous Quality Vetting
Sourcing your sheet metal parts and stamping assemblies from Vietnam bypasses the **25% US Section 301 tariffs** on Chinese imports. DEWIN mitigates offshore sourcing risks through our local presence and our proprietary 50-Point Dolphin Audit framework, validating quality systems (ISO 9001:2015, IATF 16949, ISO 13485) and equipment calibration (including 2D/3D inspection scanners) on-site.
Frequently Asked Questions
What sheet metal processes do you offer?
Laser cutting (fiber & CO2), CNC punching, progressive die stamping, CNC press brake bending, TIG/MIG/spot welding, robotic welding, and assembly. We handle the full workflow from flat blanks to finished assemblies.
What materials can you work with?
Mild steel, stainless steel (304, 316, 430), aluminum (5052, 6061), galvanized steel, copper, brass, and spring steel. Thickness from 0.3mm to 20mm depending on process.
What's the tooling cost for stamping?
Progressive dies typically range from $3,000–$15,000 depending on complexity and number of stations. Simple blanking dies start around $1,500. Tooling is 40–60% less than Chinese equivalents.
Can you handle weldments and assemblies?
Yes — many of our factories are full-service. They laser cut, bend, weld, finish, and assemble in one facility. This reduces handling, improves quality, and shortens lead times.
What certifications do your factories have?
ISO 9001 is baseline. Many also hold ISO 14001, IATF 16949 (automotive), and AWS D1.1 welding certifications. We match factory certifications to your industry requirements.
How fast can you deliver?
Prototypes: 5–7 days. First production run: 15–20 days. Repeat orders: 7–10 days. We maintain safety stock arrangements for high-volume recurring orders.
