Welding & Fabrication Shop Floors
Real photos from audited metal fabrication factories in our network — welding cells, fabrication bays, and finished weldments.

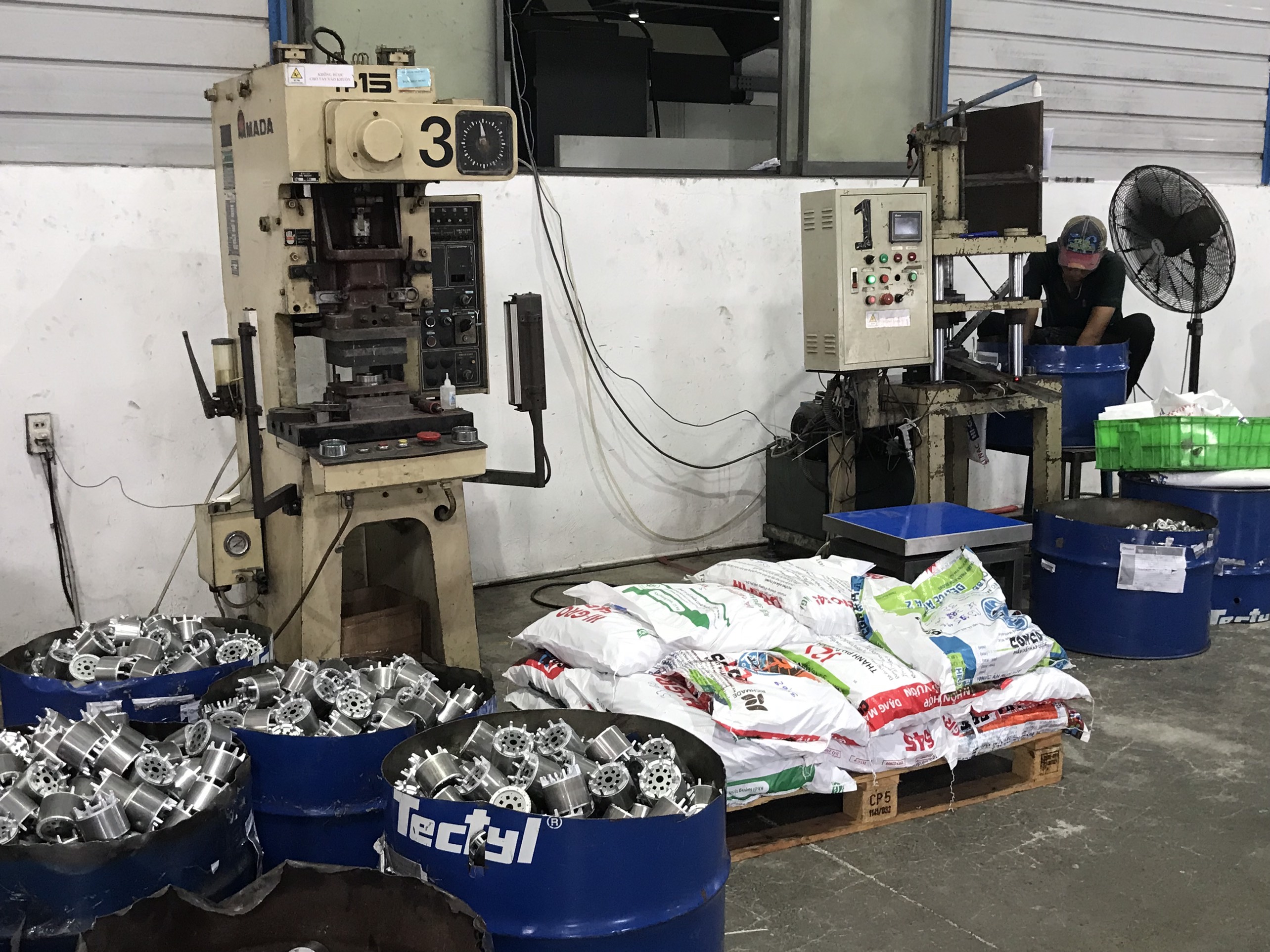

Z4744173839957 Fa59ff31d37c72b007836950cf10a412
Hautech Vietnam Precision Mechanical Joint Stock Company

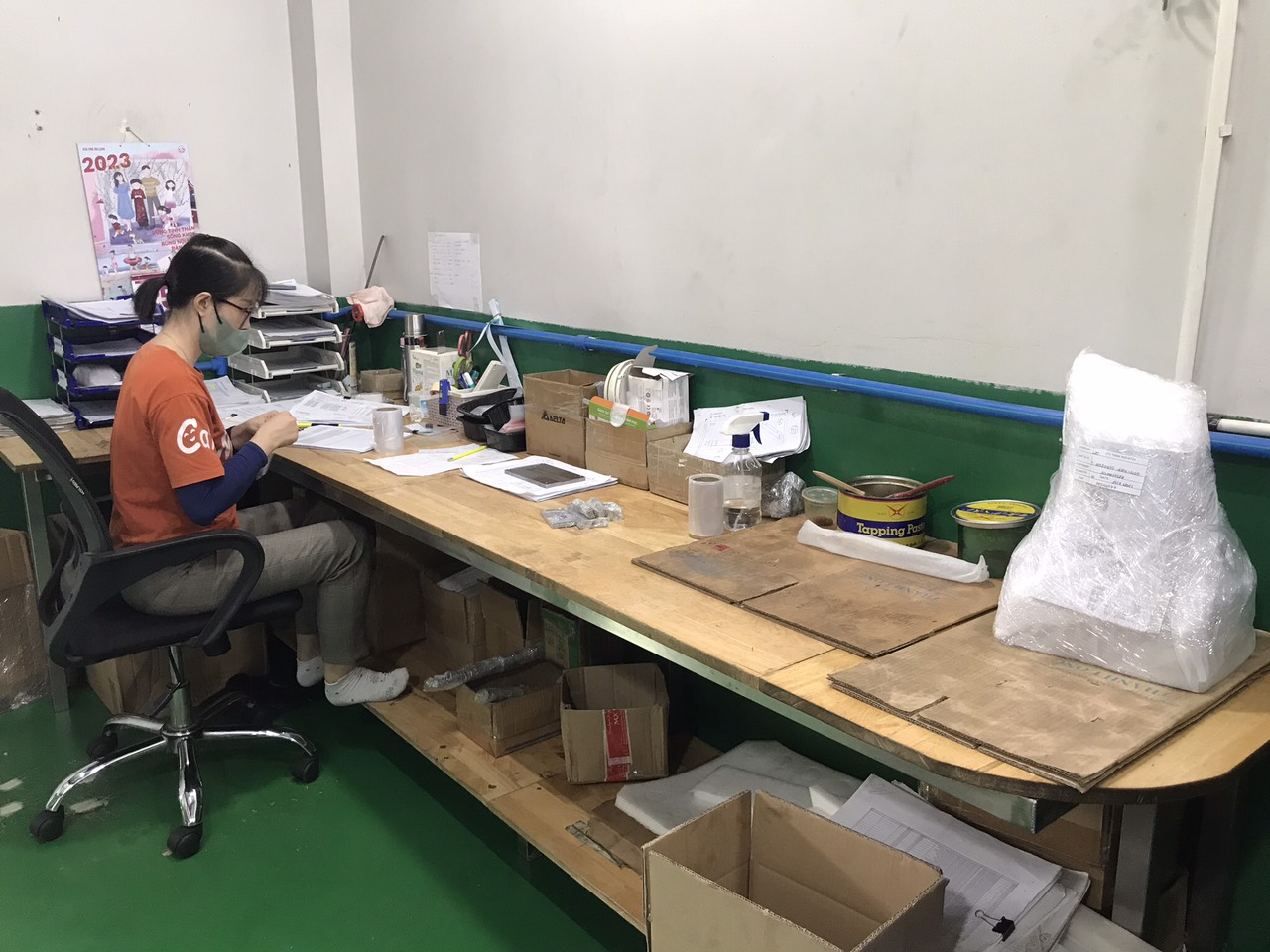

Z4707650231117 D9a160a278006d78c936602096921319
Thanh Long Industrial Services Trade Company Limited

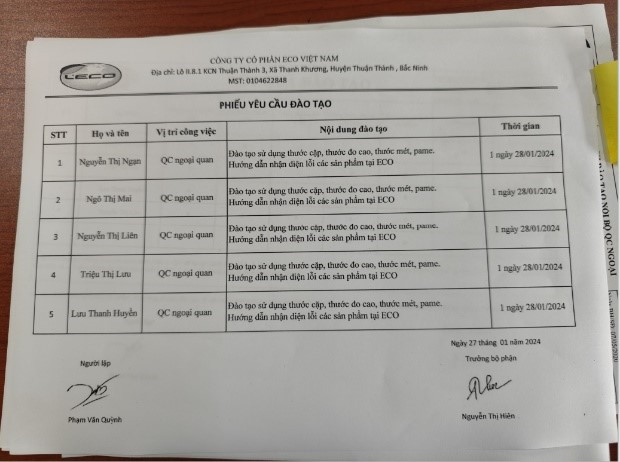

Training Request
Eco Viet Nam Joint Stock Company

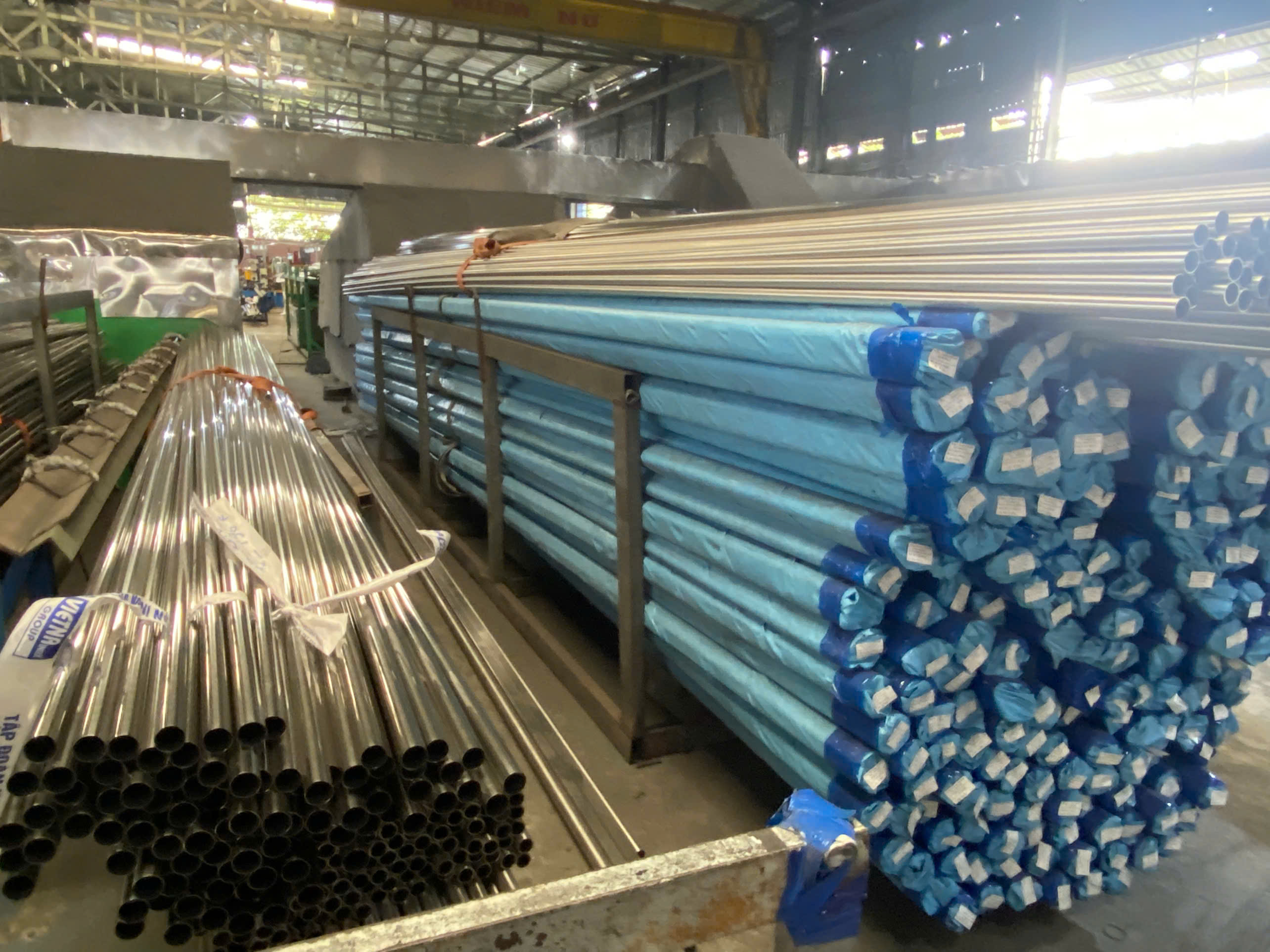

Product Area 9
Viet Na Inox Company Limited

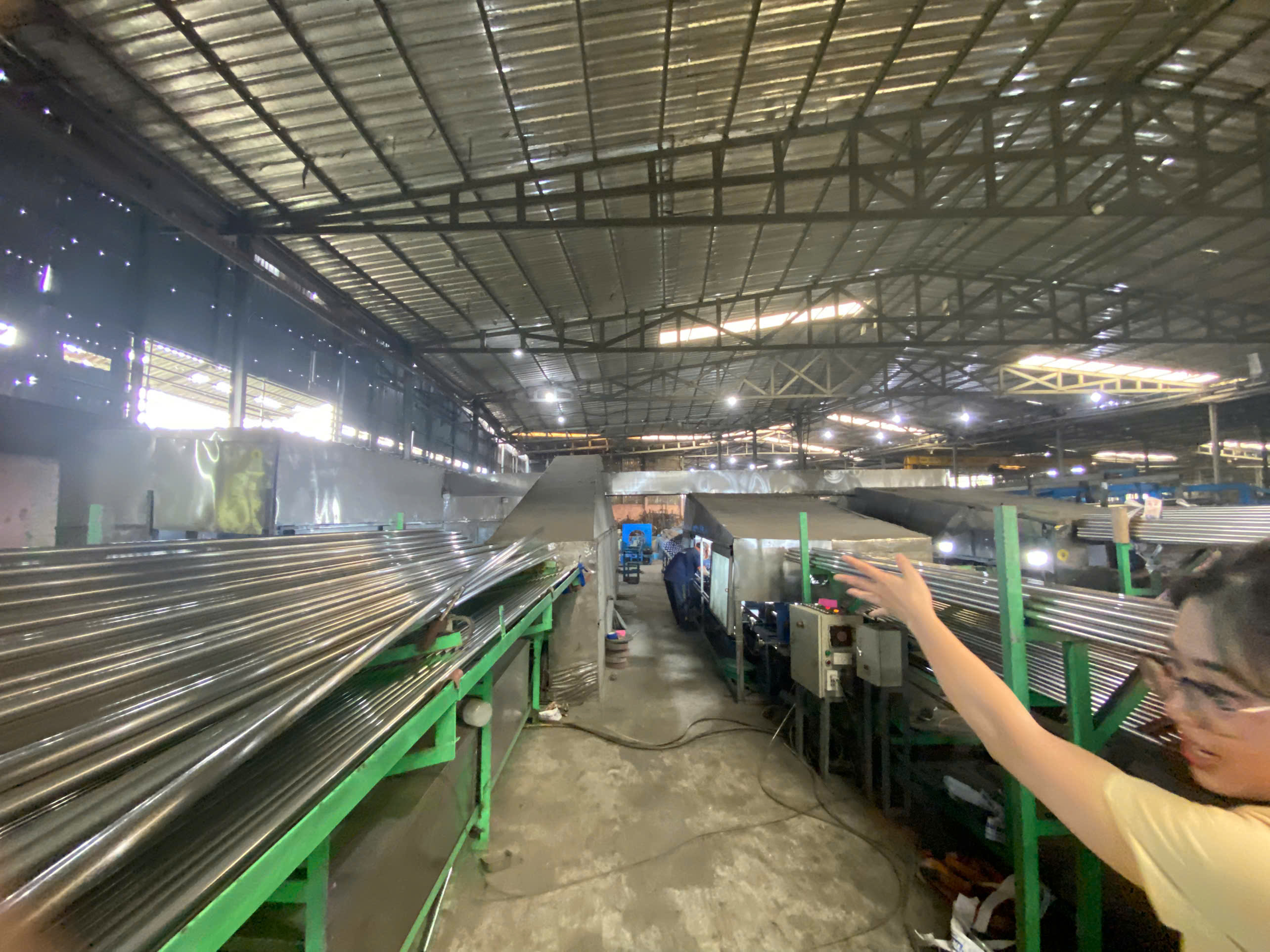

Stainless Steel Tube Polishing Line
Viet Na Inox Company Limited

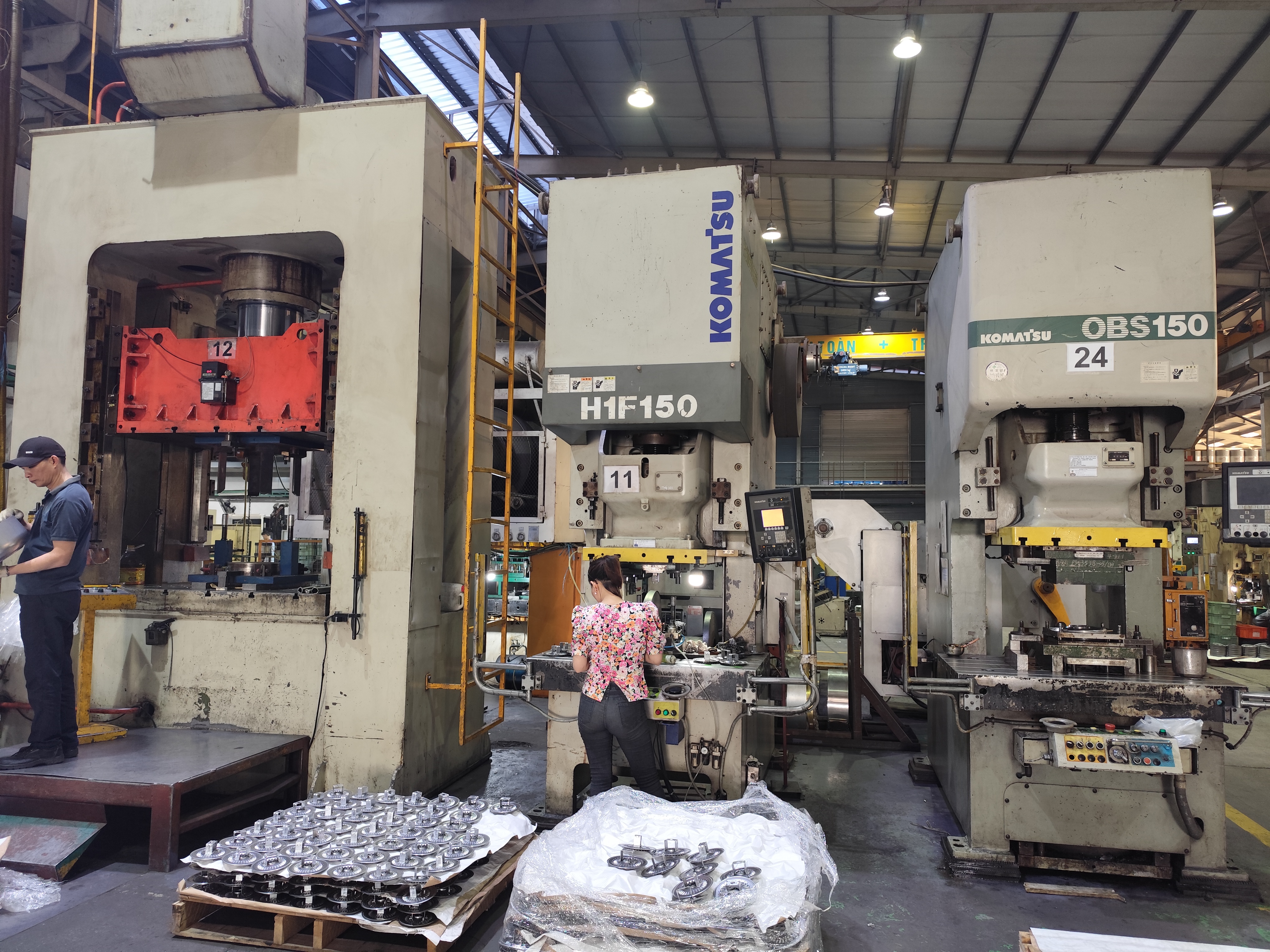

Stamping Area
Eco Viet Nam Joint Stock Company
See It in Production
Step inside a real Vietnamese factory with our local sourcing team — the same engineers who audit welding shops and witness weld inspections before shipment.
Step inside a real Vietnamese factory with our local sourcing team
Watch on YouTube
Welding Processes
Six welding technologies to match every material, joint type, and production volume.
TIG Welding (GTAW)
Precision welds on thin materials and critical joints. Ideal for stainless steel, aluminum, and titanium. Clean, high-quality beads with minimal spatter.
Best for: Aerospace brackets, food equipment, medical devices, thin-wall enclosures
MIG Welding (GMAW)
High-deposition-rate process for production welding. Faster than TIG with good penetration. Pulse MIG for aluminum and spray transfer for steel.
Best for: Structural frames, machine bases, automotive brackets, general fabrication
Robotic Welding
Automated cells for consistent, repeatable welds at high volume. Fanuc, Yaskawa, and OTC Daihen robots with seam tracking and torch cleaning.
Best for: Production runs 200+ units, automotive parts, repetitive assemblies
Spot & Projection Welding
Resistance welding for sheet metal assemblies. Fast cycle times, no filler material, minimal distortion. Up to 200kVA capacity.
Best for: Sheet metal enclosures, brackets, automotive panels, wire forms
Laser Welding
High-precision, low-distortion joining with minimal heat-affected zone. Fiber and Nd:YAG laser systems for thin materials and hermetic sealing.
Best for: Medical instruments, sensors, battery housings, precision enclosures
Flux-Cored Arc Welding
High-deposition welding for heavy structural work. Self-shielded or gas-shielded options. Excellent for thick plate and positional welding.
Best for: Heavy equipment, structural steel, pressure vessels, pipe welding
What We Fabricate
From simple brackets to turnkey multi-component assemblies — our factories handle the full fabrication workflow.
Structural Frames & Bases
Machine bases, equipment frames, chassis, and structural supports. Up to 6m long, 10 tons. Stress-relieved and precision-machined after welding.
Sheet Metal Weldments
Enclosures, cabinets, housings, guards, and covers. Laser-cut, bent, and welded with blended joints for cosmetic finish.
Pipe & Tube Assemblies
Manifolds, headers, exhaust systems, and pipe spools. CNC tube bending, orbital welding, and pressure testing available.
Precision Weldments
Fixtures, jigs, tooling, and aerospace brackets. Tight-tolerance welding with post-weld CNC machining to hold critical dimensions.
Heavy Plate Fabrication
Tanks, hoppers, chutes, and pressure vessels. Plate rolling, multi-pass welding, NDE inspection, and ASME code compliance.
Multi-Component Assemblies
Complete assemblies combining castings, machined parts, sheet metal, and hardware. Full BOM procurement through final assembly.
Weld Quality & Inspection
Certifications & Standards
- ✓ AWS D1.1 / D1.2 — Structural steel and aluminum welding
- ✓ ISO 3834 — Fusion welding quality requirements
- ✓ EN 1090 — Steel and aluminum structures
- ✓ ASME Section IX — Pressure vessel welding
- ✓ ISO 9001:2015 — All network factories
Non-Destructive Examination
- ● Visual Testing (VT) — 100% inspection per AWS D1.1
- ● Dye Penetrant (PT) — Surface crack detection
- ● Magnetic Particle (MT) — Ferrous flaw detection
- ● Ultrasonic Testing (UT) — Internal defect detection
- ● Radiographic Testing (RT) — X-ray for critical joints
Weldable Materials
Carbon & Alloy Steel
A36 · 1018 · 1045 · 4130 · 4140 · 4340 · A514
MIG, FCAW, SAW · 1–50mm+
Stainless Steel
304/304L · 316/316L · 2205 Duplex · 17-4 PH
TIG, MIG, Laser · Purge welding
Aluminum
5052 · 5083 · 6061 · 6063 · 7075
TIG, Pulse MIG · AC TIG
Copper & Brass
C110 · C360 · Beryllium copper C172
TIG, Laser · Preheat required
Titanium
Grade 2 · Grade 5 (Ti-6Al-4V) · Grade 23
TIG in argon chamber
Exotic Alloys
Inconel 625/718 · Hastelloy · Monel
TIG, Laser · Specialty fillers
Welding & Fabrication Specifications
Standard working envelope across our certified welding network.
| Parameter | Capability | Notes |
|---|---|---|
| Max Weldment Size / Weight | Up to 6 m long · 10 tons | Heavy shops with overhead cranes up to 50 tons |
| Material Thickness | 0.5 mm thin-gauge TIG to 50 mm+ multi-pass plate | Minimum 0.8 mm wall recommended for weld integrity |
| Processes | TIG, MIG, FCAW, spot/projection, stud, laser, robotic | Robotic cells recommended for runs of 200+ units |
| Materials | Carbon/alloy steel, stainless, aluminum, copper, titanium, Inconel | Qualified WPS/PQR per material and joint type |
| Standards & Inspection | AWS D1.1/D1.2, ISO 3834, EN 1090, ASME IX · VT, PT, MT, UT, RT | Weld maps and NDE reports supplied with shipment |
| Typical Lead Time | Prototypes: 2–4 weeks · Production: 3–6 weeks · Repeats: 2–3 weeks | Depends on complexity, volume, and finishing |
How It Works
Send Drawings
3D models and 2D drawings with weld symbols, tolerances, and finish requirements.
DFM + Quote
Within 24 hours: pricing, lead time, WPS recommendations, and DFM feedback.
Fabrication + QC
Cutting, forming, welding, finishing, and NDE inspection with in-process documentation.
Delivery
Crated and shipped with full documentation: weld maps, NDE reports, material certs.
Why Vietnam for Welding Fabrication?
Deep Welding Talent Pool
Vietnam's shipbuilding and oil & gas industries have trained thousands of certified welders. Many hold 6G pipe qualifications and AWS certifications.
Competitive Pricing
Fabrication shop rates of $12–20/hr. Savings come from lower labor and overhead costs — not from cutting corners on quality.
Zero US Tariffs
No Section 301 surcharges on Vietnamese fabrications. Steel weldments from China face 25%+ tariffs — from Vietnam, standard MFN rates only.
Full-Service Shops
Cut, bend, weld, machine, finish, and assemble under one roof. Fewer handoffs means faster delivery and better quality.
