Incomplete CAD packages delay RFQ response times and cause quoting errors. Our audit engineers evaluate hundreds of drawing packages monthly. You can eliminate supplier turnaround delays by optimizing 3D solid models and 2D engineering drawings before quote submission.
Preparing CAD files for fast and accurate custom part quotes requires submitting neutral 3D STEP or IGES files alongside 2D PDF technical drawings that explicitly specify critical dimensions, thread parameters, material grades, surface finishes, and GD&T tolerances.
Key takeaways:
- Always pair a neutral 3D STEP or IGES solid model with a 2D PDF drawing to establish complete part geometry and inspection criteria.
- Specify exact material grades, surface roughness values, and tight tolerances on the 2D drawing to prevent costly default assumptions.
- Export 3D CAD files as solid geometry rather than surface meshes to maintain direct compatibility with CAM software.
- Standardize your quoting documentation using an rfq-template to ensure partner factories deliver verified rapid RFQ response and structured technical quotes.
What CAD File Formats Yield the Fastest Manufacturing Quotes?
When we evaluate RFQ packages across our database of vetted Vietnamese manufacturing facilities, file compatibility directly dictates how quickly estimators process your project.
Neutral 3D CAD formats like STEP and IGES yield the fastest manufacturing quotes because they allow estimating engineers to import native solid geometry directly into CAM and quoting software without software licensing conflicts or geometry corruption.
Definition of CAD File Preparation
CAD file preparation is the process of formatting, converting, and annotating 3D digital models and 2D technical drawings to ensure complete geometric and manufacturing clarity for quoting suppliers. Proper preparation resolves file translation errors before an estimator opens your request.
When sourcing precision parts from overseas suppliers, transferring proprietary native files (such as .sldprt, .ipt, or .prt) often creates immediate friction. Estimators at supplier facilities may run different software versions or lack expensive CAD licenses for every major platform. Converting native files can lead to surface corruption, missing features, or distorted geometry.
Across our network of audited suppliers, which includes 30 dedicated CNC machining factories and 17 sheet metal specialists, estimating teams rely on neutral solid files. STEP files (AP203 or AP214 standard) represent the global industry gold standard for 3D model interchange. STEP files retain solid boundary representation (B-Rep) data, enabling CAM software to instantly calculate cycle times, tool paths, and raw material volumes.
For example, audited facilities such as Thien Phuc Precision Co. Ltd, which houses CNC milling machines and CNC lathe machines on file, utilize automated CAM tools to generate fast quotes from clean STEP models. Submitting non-standard or mesh formats forces engineers to re-model parts manually, introducing delays and human error.
| CAD File Format | Geometry Type | Estimation Speed | CAM Compatibility | Recommended Use Case |
|---|---|---|---|---|
| STEP (.stp / .step) | 3D Solid (B-Rep) | Fast (Immediate Import) | Universal | Primary 3D format for all machined & fabricated parts |
| IGES (.igs / .iges) | 3D Surface / Wireframe | Medium (May require stitching) | High | Alternative 3D format for complex surfaces |
| Native (.sldprt, .ipt) | Proprietary Solid | Slow (Requires software conversion) | Software-Dependent | Acceptable only if STEP export is unavailable |
| STL (.stl) | 3D Triangular Mesh | Stalled / Rejected for CNC | Low (Requires re-modeling) | 3D Printing / Additive Manufacturing ONLY |
| PDF (.pdf) | 2D Vector / Raster | N/A (Manual Review) | N/A (Used for Inspection) | Mandatory companion drawing for tolerances & threads |
Why Are 2D Drawings Necessary Alongside 3D CAD Models?

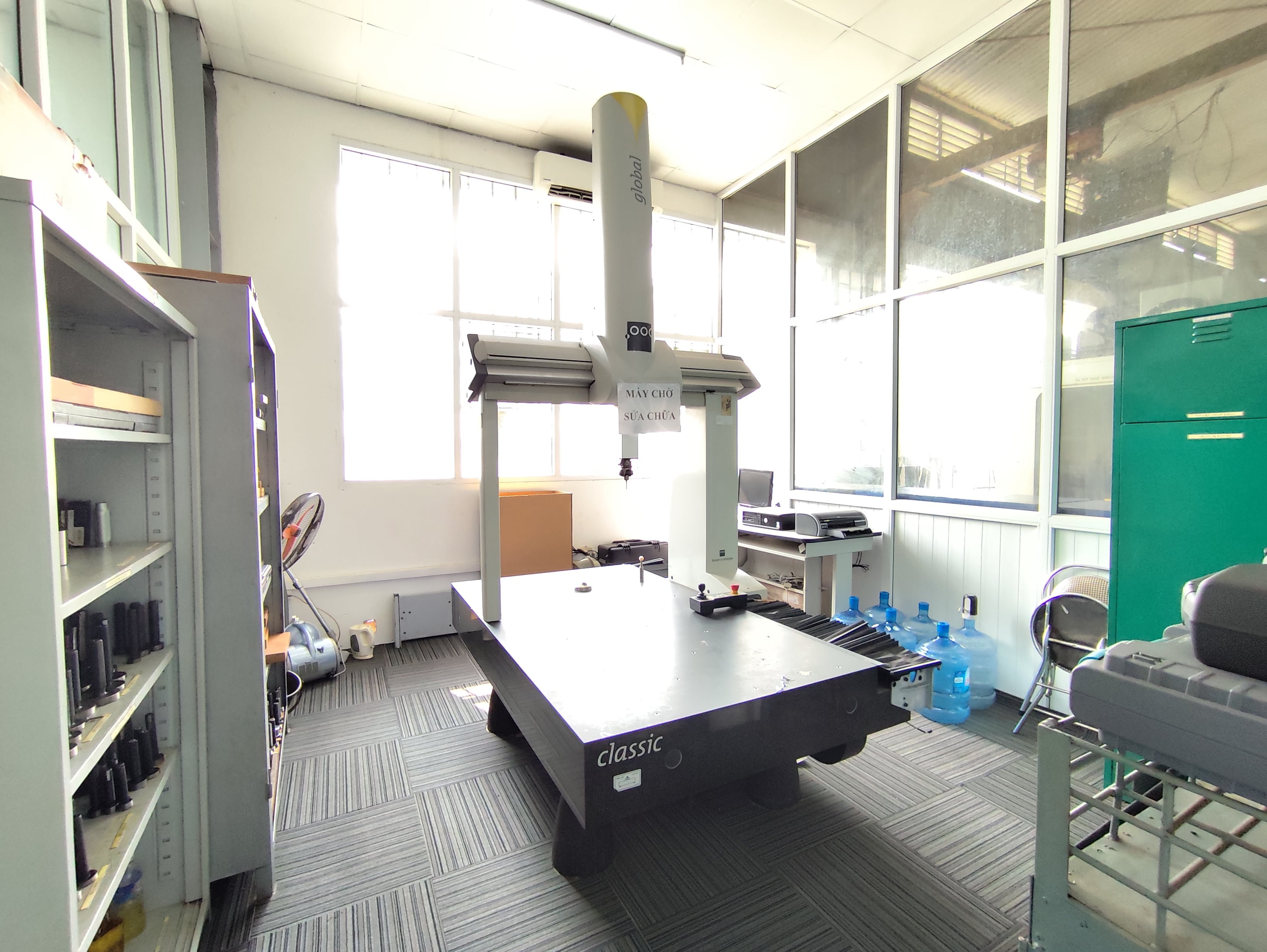

Our audit team routinely reviews production setups on factory floors. 3D models define basic shape, but 2D PDF drawings establish critical tolerances and acceptance criteria.
Combining 2D PDF drawings with 3D CAD models is necessary for custom part quoting because 2D drawings explicitly communicate non-geometric manufacturing requirements, including critical tolerances, thread specifications, surface finishes, heat treatments, and primary inspection datums.
Essential Elements of a Quoting Drawing
A complete 2D drawing acts as a technical contract between the buyer and the manufacturing facility. While a 3D STEP file provides accurate nominal dimensions for services/cnc-machining, it cannot embed critical shop-floor instructions such as surface roughness, surface plating, or local thread tolerances.
To receive an accurate quotation without conservative price buffers, your 2D engineering drawing must contain five core technical elements:
- Title Block Information: Material grade (e.g., AL 6061-T6, SS 316), overall part quantity, protective finish requirements, and default block tolerances.
- Critical Dimensions & Tolerances: Explicit callouts for tight tolerances (e.g., ±0.01 mm) on bearing fits or alignment pins, leaving non-critical geometry to general block tolerances.
- Thread Callouts: Complete thread designations including pitch, thread depth, tap drill depth, and thread class (e.g., M6x1.0 - 6H or 1/4-20 UNC-2B).
- Geometric Dimensioning & Tolerancing (GD&T): Datums, flatness, perpendicularity, and runout specifications for mating interfaces.
- Surface Finish Specifications: Required Ra values (e.g., Ra 1.6 µm) and secondary treatments, cross-referencing standard process options in services/finishes.
| Information Category | Included in 3D STEP File | Included in 2D PDF Drawing | Quoting Impact if Missing |
|---|---|---|---|
| Nominal Geometry | Yes (Exact B-Rep) | Yes (Reference Dims) | Quotes stalled or inaccurate |
| Tight Tolerances | No | Yes | Oversized tolerance buffers applied |
| Thread Pitch & Depth | No (Modeled as cylinders) | Yes | Tap tooling cost overlooked |
| Material & Heat Treatment | No | Yes | Raw material price cannot be quoted |
| Surface Finish & Anodizing | No | Yes | Finishing cost excluded from unit price |
How Should Tolerances and Thread Specs Be Detailed in CAD Packages?
When our engineers audit Vietnam suppliers, we verify how estimators interpret drawing callouts. Ambiguity in tolerance notes almost always causes delayed quotes or inflated pricing.
Tolerances and thread specifications should be detailed in CAD packages by annotating functional critical tolerances explicitly on the 2D PDF drawing while referencing standard ISO 2768 tolerances for non-critical features and providing clear thread callouts.
Tolerance Optimization for Cost Control
Over-tolerancing is one of the primary drivers of inflated manufacturing quotes. When an RFQ specifies title block tolerances of ±0.01 mm across all dimensions, estimating engineers calculate pricing based on low feed rates, multi-stage grinding, and high scrap rates.
To optimize pricing, apply tight tolerances only where functional assembly requires them. For general features, specify standard international tolerance classes such as ISO 2768-m (medium) for CNC machining or ISO 2768-c (coarse) for sheet metal and stamping.
Thread specifications require explicit detailing on 2D drawings because 3D CAD files represent threaded holes as smooth nominal cylinders. If an estimator sees a 5 mm hole on a 3D model without a 2D drawing note, they will quote it as a standard drilled clearance hole rather than a tapped M6x1.0 thread. Tapped holes require specialized cutting taps, roll taps, or thread milling operations, which add tooling and cycle time costs.
Suppliers specializing in precision metalwork, such as Smctech (which maintains CNC laser cutting and punching machines on file), rely on accurate bend allowances and clear thread callouts to determine whether press nuts, tapped holes, or laser-pierced pilots are required. Explicitly stating blind hole tap depths versus full thread depths prevents costly misquotes.
/Essence%20-%20Photo/Products%20(1).jpg)
What Common CAD File Errors Delay Supplier Quotes?
Walk any factory floor with our audit engineers and you will see job queues stalled by simple CAD export errors that crash CAM software during quotation.
Unstitched surface geometry, broken solid bodies, missing assembly sub-components, suppressed drawing features, and missing sheet metal bend specifications represent the most common CAD file errors that delay supplier quotations by requiring back-and-forth technical clarifications.
Pre-Flight CAD Export Checklist
Preventing quote delays requires performing a quick pre-flight audit on your export files before submitting an RFQ. Small modeling anomalies that appear harmless in native CAD software often cause complete file translation failures in supplier CAM programs.
- Exporting STL Instead of STEP: Sending STL mesh files for CNC machining forces estimators to reject the file or manually rebuild solid surfaces. STL files are composed of flat triangular facets, lacking exact cylindrical centerlines or arc radii.
- Unstitched Surfaces and Sheet Bodies: Exporting surface models instead of watertight solid bodies prevents automatic volumetric mass calculations in CAM software. Always check your CAD export settings to ensure “Export solids as single bodies” is selected.
- Missing Assembly Files: Submitting an assembly file without including the individual part files creates broken links. Export multi-part assemblies as a single combined
.stepfile or package all individual part files in a single compressed folder. - Incorrect Sheet Metal Bend Parameters: When requesting sheet metal services/bending or services/stamping, do not export flattened models with hard-coded K-factors unless agreed upon. Provide the folded 3D model alongside a 2D drawing specifying sheet thickness, allowing the factory’s press brake software to calculate precise flat pattern allowances based on their specific tooling inventory.
- Unresolved Interferences: Mating components in an assembly with overlapping solid geometry cause automated cost estimation software to calculate incorrect part volumes and collision errors.
FAQ
Can suppliers quote parts directly from 2D PDF files without 3D CAD?
Suppliers can quote simple parts from 2D PDF drawings alone, but complex 3D CNC machining or sheet metal components require 3D CAD files for rapid automated CAM cost estimation. Providing 3D solid files eliminates manual geometric reconstruction and significantly accelerates quotation turnaround.
Why shouldn’t STL files be submitted for CNC machining quotes?
STL files contain faceted mesh geometry rather than true mathematical solids, preventing CAM software from calculating exact tool paths, arc radii, and machining cycle times. Submitting STL files for machined components typically causes estimators to stall quotes until native STEP solids are provided.
How do international standards impact CAD drawing interpretation in Vietnam?
International standard formats like ISO and ASME ensure seamless engineering interpretation across Vietnamese manufacturing teams, eliminating local drawing conventions or language translation ambiguity. Under trade frameworks like the CPTPP and EVFTA, adhering to standard ISO drawing specs streamlines quality compliance and export documentation.
Conclusion
Optimizing your CAD files with STEP solids and detailed 2D PDFs ensures rapid quote turnaround from audited Vietnamese manufacturers. Submit your RFQ package to get an instant quote.
