Scaling from prototypes to mass production often exposes unforeseen tooling expenses. High upfront costs and design errors can derail your budget. We recommend a phased DFM-led approach to minimize risk and optimize total cost of ownership.
Procurement teams manage tooling costs by implementing a phased strategy that utilizes soft tooling for initial validation, followed by steel hard tooling for high-volume runs. This approach includes early Design for Manufacturability (DFM) reviews and negotiating amortized tooling payments tied to volume milestones.
Key takeaways:
- Prioritize early DFM reviews to catch design flaws before mold fabrication.
- Use soft tooling for prototyping and steel molds for mass production.
- Negotiate mold ownership and amortized costs to protect cash flow.
- Implement First Article Inspection (FAI) to validate quality before full runs.
How do I optimize tooling design to prevent costly modifications during mass production?
Our engineers often see production halts caused by designs that simply cannot be manufactured at scale without expensive changes.
Tooling optimization requires early Design for Manufacturability (DFM) reviews to identify potential constraints in part geometry, draft angles, and wall thickness. Conducting these reviews before steel cutting prevents expensive post-production modifications and ensures the design is compatible with high-volume manufacturing processes.
What is manufacturing tooling?
Manufacturing tooling refers to the custom-engineered hardware, such as injection molds, stamping dies, or assembly jigs, required to produce repetitive parts with high precision.
The Importance of DFM
Transitioning from prototyping to high-volume production requires early Design for Manufacturability (DFM) reviews to identify potential tooling constraints. When a part is designed solely for 3D printing or low-volume CNC machining, it often lacks the necessary draft angles or uniform wall thicknesses required for rapid injection molding or stamping. If these errors are not caught during the digital design phase, the procurement team faces the massive expense of “re-tooling,” which involves scrapping an existing mold and starting over.
Choosing the Right Material
Selecting the appropriate material for the tool is a critical cost-management decision. While aluminum is excellent for rapid prototyping, it cannot withstand the thermal and mechanical stresses of millions of cycles. We recommend evaluating the expected lifetime of the part before selecting the tool material.
| Feature | Aluminum Tooling | Steel Tooling |
|---|---|---|
| Best Use Case | Prototypes / Low Volume | Mass Production |
| Cycle Life | Low (hundreds of shots) | High (hundreds of thousands) |
| Lead Time | Short | Long |
| Cost | Lower | Higher |

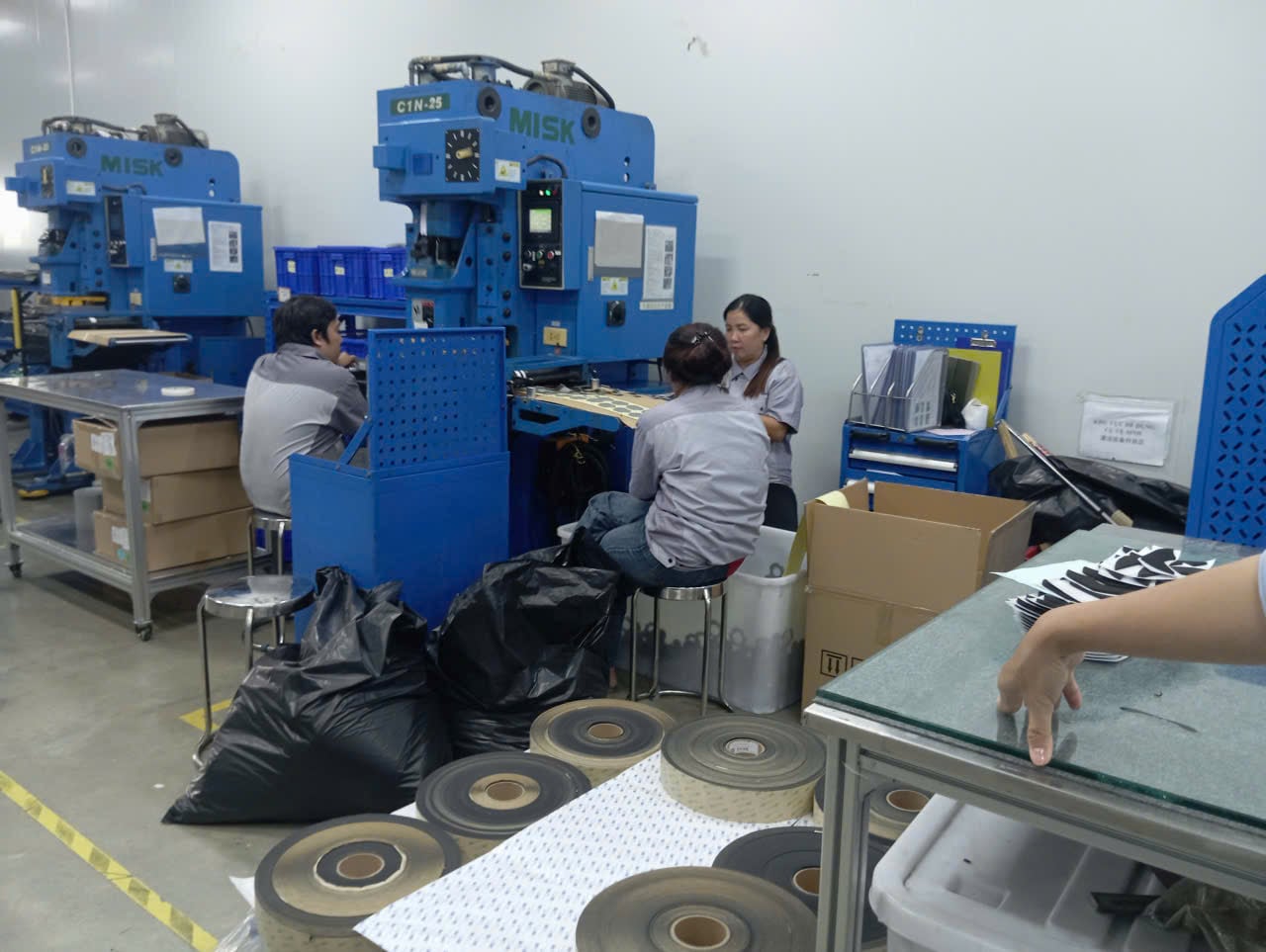

/Century%20Creation%20-%20Photo/Pre-molding%20machine%20.jpg)
How can I structure tooling payment terms and retain mold ownership in Vietnam?
We advise procurement managers to treat tooling as a critical capital asset rather than just a one-time production expense.
Effective tooling management involves negotiating amortized costs tied to volume milestones and establishing explicit mold ownership agreements. These legal frameworks protect intellectual property and ensure that the physical assets remain the property of the buyer, regardless of the manufacturing partner’s location.
Amortization and Cash Flow
Sourcing managers should negotiate amortized tooling costs tied to volume milestones to optimize cash flow during early production scaling. Instead of paying 100% of the tooling cost upfront, you can negotiate a structure where a portion of the tooling fee is baked into the unit price of the first several thousand parts. This reduces the initial capital expenditure (CAPEX) and aligns the tooling investment with actual revenue generation.
Protecting Asset Ownership
Establishing explicit mold ownership agreements protects intellectual property and assets when working with overseas manufacturing partners. Without a clear contract, the physical molds may be considered the property of the factory. We recommend using a Delaware LLC contracting entity to sign these agreements, providing an extra layer of legal recourse for US and EU buyers.
| Payment Model | Financial Benefit | Best For |
|---|---|---|
| Upfront Payment | Faster tool fabrication | Established brands with high CAPEX budget |
| Amortized | Protects early cash flow | Startups and rapid-scaling products |
| Milestone-based | Limits risk of poor quality | Highly technical or complex components |
How do I validate prototype tooling quality before committing to full-scale production runs?
Skipping validation steps during the prototyping phase often leads to catastrophic failure during the mass production ramp-up.
Validation of prototype tooling quality relies on using soft tooling for geometry checks and implementing standardized First Article Inspection (FAI) procedures. These steps allow engineers to confirm dimensional accuracy and material performance before the massive capital expenditure of multi-cavity hard tooling.
The Phased Tooling Strategy
A phased tooling strategy—starting with single-cavity bridge tooling—mitigates upfront financial risk while validating local supplier performance. Soft tooling or prototype molds allow engineers to validate part geometry and material performance before investing in expensive multi-cavity hard tooling. This “bridge” phase acts as a technical checkpoint.
Quality Validation Protocols
Implementing standardized First Article Inspection (FAI) procedures helps detect dimensional discrepancies prior to launching full production runs. During FAI, the first parts produced from the new tool are subjected to rigorous measurement against the original CAD model. We suggest working with partners who follow strict quality management systems. Furthermore, clear maintenance schedules and shot-count tracking prolong mold life and maintain tight tolerances over high-volume output cycles. If a supplier cannot provide a shot-count log, they may be pushing tools beyond their safe operational limits.

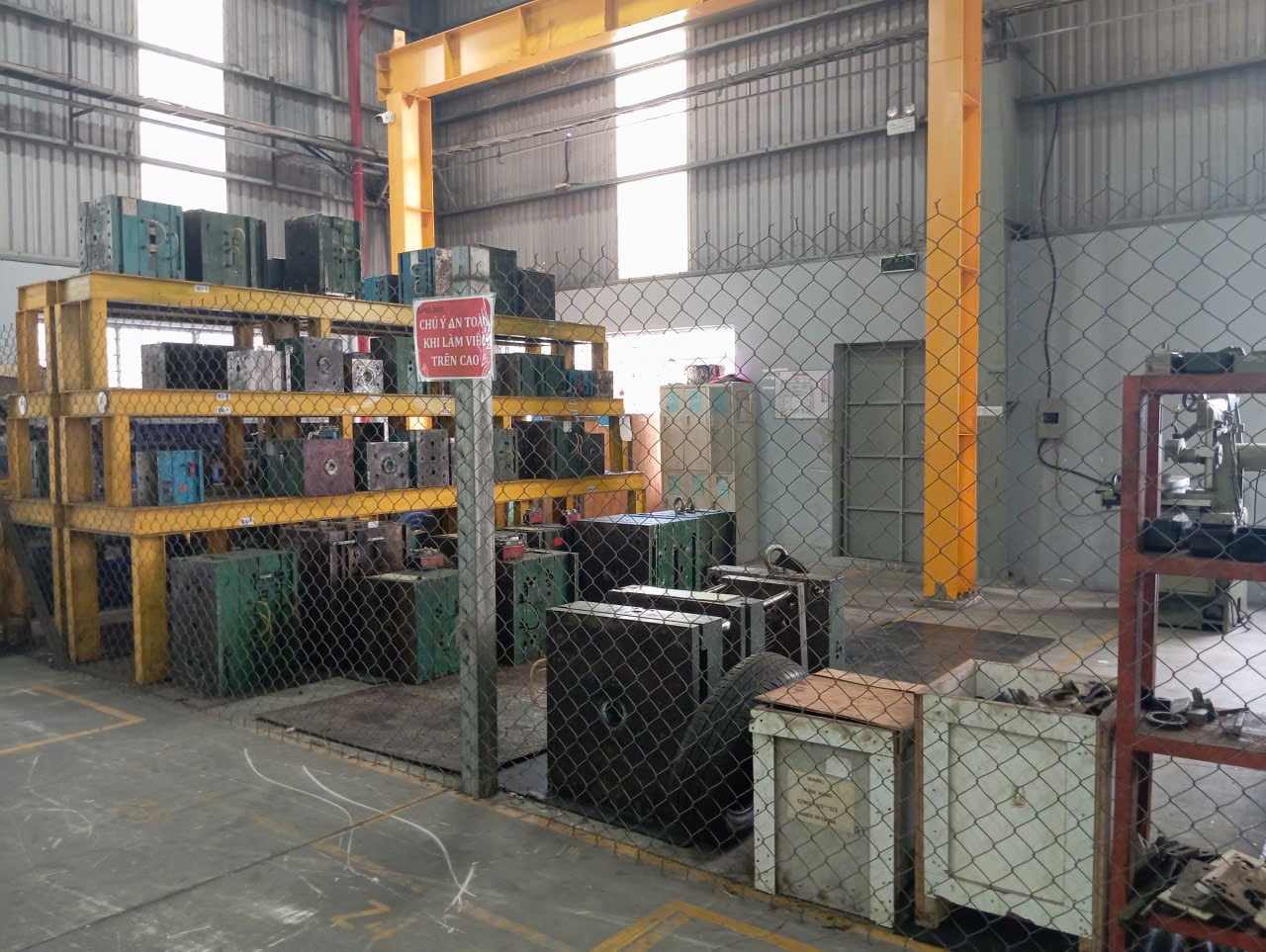

/YuenFung%20-%20Photo/Molding%20area.jpg)
How do I ensure local supplier capacity can scale smoothly from low-volume to high-volume output?
during on-site production audits, we look for more than just machine count; we look for scalable infrastructure.
Scaling manufacturing requires selecting Tier 1 or Tier 2 suppliers who possess the technical infrastructure for high-volume output. Procurement teams must verify secondary process availability and ensure the supplier has established maintenance schedules to maintain tight tolerances during extended production cycles.
Evaluating Supplier Tiers
Not all factories in Vietnam are equipped for high-volume scale. We use QCLDM tiers to categorize suppliers, and we only quote Tier 1-2 factories for high-volume requirements. Tier 1 factories typically have more advanced automation and more robust management systems.
Managing Secondary Processes
Vietnam’s expanding industrial supply chain provides diverse options for secondary processes, such as finishes or assembly, though local raw material sourcing availability varies by alloy and resin type. If your product requires specialized coatings or specific high-grade resins, you must verify that the supplier has a stable local supply chain or a reliable import pipeline. A supplier might have the molding capacity to scale, but if their secondary finishing partner cannot handle the increased volume, your entire production line will bottleneck. We recommend auditing both the primary manufacturer and their critical secondary partners to ensure end-to-end scalability.
FAQ
What is bridge tooling?
Bridge tooling refers to temporary, low-cost molds used to produce small quantities of parts while permanent mass-production tools are being manufactured. This allows for early market testing and revenue generation during the transition period.
How long do steel molds typically last?
Steel molds can last for hundreds of thousands or even millions of cycles depending on the steel grade and maintenance. High-quality hardened steel is essential for maintaining dimensional stability over long-term production runs.
Can I use Vietnam for high-volume injection molding?
Vietnam’s manufacturing sector is highly capable of high-volume injection molding through its established Tier 1 and Tier 2 factories. Many manufacturers leverage Vietnam’s 16+ FTAs to export these high-volume goods globally with optimized duty structures.
Conclusion
Effective tooling management minimizes financial risk during the transition to mass production. By prioritizing DFM, ownership rights, and validated quality, you secure a scalable supply chain in Vietnam. get an instant quote.
